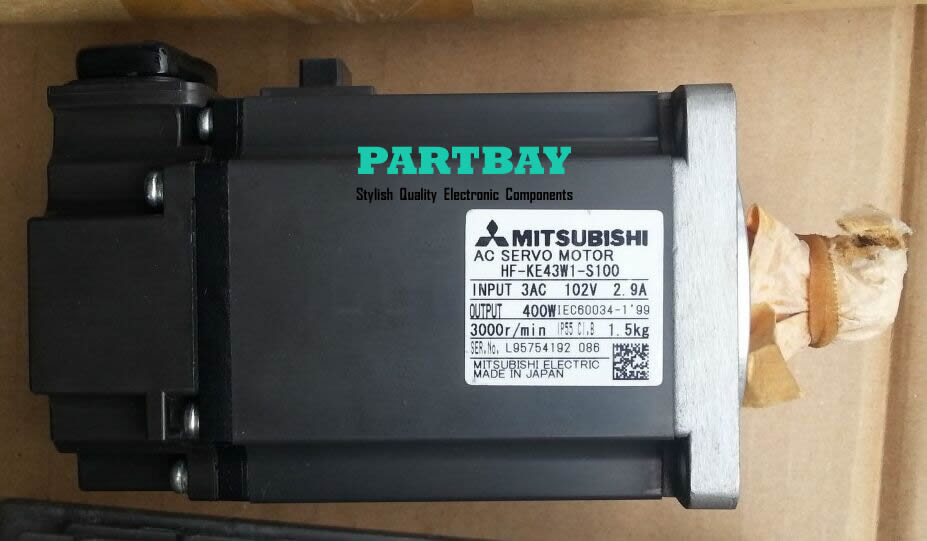

MITSUBISHI servo motor HF-KE43W1-S100
MITSUBISHI servo motor HF-KE43W1-S100
  • MITSUBISHI servo motor HF-KE43W1-S100

  • item No : HF-KE43W1-S100
  • Manufacturer: Mitsubishi Electric HF-KE43W1-S100 Servomotor Rated Output (W):400 Rated Speed: 3000 (r/min) Without Electromagnetic Brake Shaft Shape : Standard (Straight Shaft) Encoder Resolution 131,072 ppr (Inc) Super Series MR-E HF-KE Super 3000 r/min Series Servomotor Servo Motor Model : HF-KE43W1-S100 Compatible Servo Amplifier Model : MR-E-40A-KH003 Compatible Servo Amplifier with Analog Input Interface : MR-E-40AG-KH003 Power Facility Capacity (kVA) (*1) : 0.9 Continuous : Rated Output (W) : 400 Running Duty : Rated Torque (N·m [oz·in]) : 1.3 (184) Maximum Torque (N·m [oz·in]) : 3.8 (538) Rated Speed (r/min) : 3000 Maximum Speed (r/min) : 4500 Permissible Instantaneous Speed (r/min) : 5175 Power Rate At Continuous Rated Torque (kW/s) : 38.6 Rated Current (A) : 2.7 Maximum Current (A) : 8.1 Regenerative : With No Options : 249 MR-RB032 (30W) : 747 Braking Frequency : MR-RB12 (100W) : 2490 Regenerativ
  • Inquiry now

Detailed description


Chat with meChat with me online

MITSUBISHI servo motor HF-KE43W1-S100


  • Manufacturer: Mitsubishi Electric

  • HF-KE43W1-S100

  • Servomotor

  • Rated Output (W):400

  • Rated Speed: 3000 (r/min)

  • Without Electromagnetic Brake

  • Shaft Shape : Standard (Straight Shaft)

  • Encoder Resolution 131,072 ppr (Inc)

  • Super Series

  • MR-E HF-KE Super 3000 r/min Series Servomotor

  • Servo Motor Model : HF-KE43W1-S100

  • Compatible Servo Amplifier Model : MR-E-40A-KH003

  • Compatible Servo Amplifier with Analog Input Interface : MR-E-40AG-KH003

  • Power Facility Capacity (kVA) (*1) : 0.9

  • Continuous : Rated Output (W) : 400

  • Running Duty : Rated Torque (N·m [oz·in]) : 1.3 (184)

  • Maximum Torque (N·m [oz·in]) : 3.8 (538)

  • Rated Speed (r/min) : 3000

  • Maximum Speed (r/min) : 4500

  • Permissible Instantaneous Speed (r/min) : 5175

  • Power Rate At Continuous Rated Torque (kW/s) : 38.6

  • Rated Current (A) : 2.7

  • Maximum Current (A) : 8.1

  • Regenerative : With No Options : 249

  • MR-RB032 (30W) : 747

  • Braking Frequency :

  • MR-RB12 (100W) : 2490

  • Regenerative Braking Frequency (Times/Min.) (*2, *3)

  • MR-RB32 (300W) : —

  • Moment Of Inertia J (x10-4kg • m2 ) [J (oz • in2 )]

  • Standard : 0.42 (2.30)

  • With Electromagnetic Brake : 0.50(2.73)

  • Recommended Load/Motor Inertia Moment Ratio : Maximum of 15 times the servo motor’s inertia moment (*5)

  • Speed/Position Detector : Incremental encoder (resolution per servomotor rotation: 131072 p/rev)

  • Attachments : -

  • Structure : Totally enclosed non ventilated (protectionvel:leIP55) (*6)

  • Ambient Temperature : 0 to 40°C (32 to 104°F) (non-freezing), storage: -15 to 70°C (5 to 158°F) (non-freezing)

  • Environment : Ambient Humidity : 80% RH maximum (non-condensing), storage: 90% RH maximum (non-condensing)

  • Atmosphere : Indoors (no direct sunlight);no corrosive gas, in ammable gas, oil mist or dust

  • Elevation/Vibration (*7) : 2 2

  • 1000m or less above sea level; X: 49m/sY:49m/s

  • Mass kg (lb) : Standard : 1.5 (3.3)

  • With Electromagnetic Brake : 2.1 (4.7)

  • Shipping Weight : 2.5 Kg
