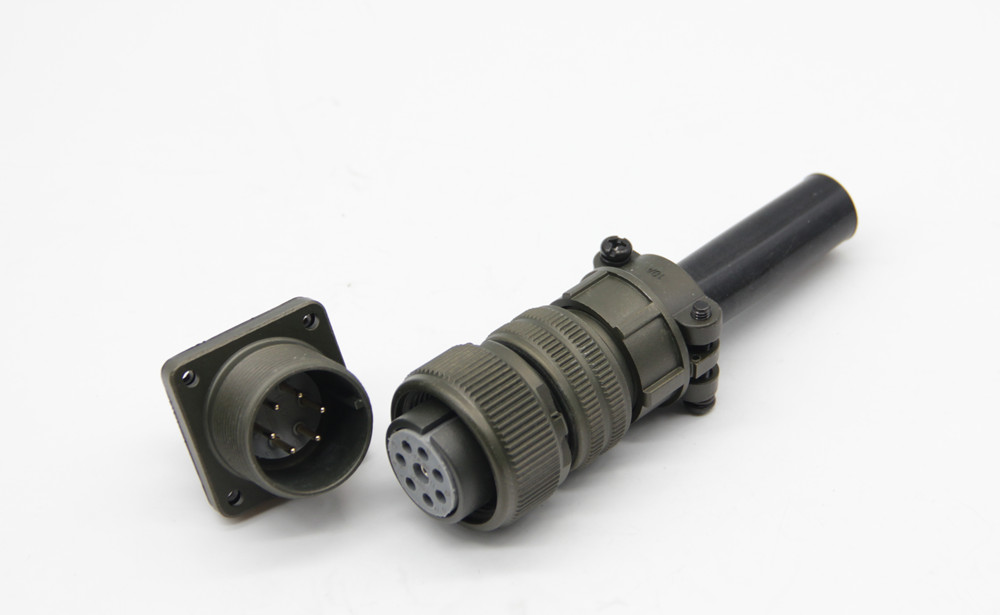

Maojwei Military Connector MIL 5015 Shell 18
Maojwei Military Connector MIL 5015 Shell 18
  • Maojwei Military Connector MIL 5015 Shell 18

  • item No : MIL 5015 Shell 18
  • Features: (a) High quality,highwithstanding voltage, high reliability;low cost;light weight, different size; (b)MS3106 straight plug,MS3108 angled plug,MS3102 socket,MS3101plug,MS3100 plug,MS3057cable clamp,MS25042/25043dust cap. (c) Solder and crimping type; (d) Good sealing performance, waterproof IP67; (e)Corrosion resistance; hard dielectric inserts;good electrical conductivity and mechanical strength.
  • Inquiry now

Detailed description


Chat with meChat with me online

Explain:

Maojwei Mil-C-5015 series connectors conform to US military Mil-C-5015 standard(GJB600), with high strength Aluminum Alloy shell, Synthetic rubber insulator, threaded coupling, Alternate insert positioning, solderand crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military , defense equipment, marine , automobile industry, instrument and servo motor etc. Our connectors can replace European and American similar products.

Features: (a) High quality,highwithstanding voltage, high reliability;low cost;light weight, different size;

                (b)MS3106 straight plug,MS3108 angled plug,MS3102 socket,MS3101plug,MS3100 plug,MS3057cable clamp,MS25042/25043dust cap.

               (c) Solder and crimping type;

               (d)  Good sealing performance, waterproof IP67;

               (e)Corrosion resistance; hard dielectric inserts;good electrical conductivity and mechanical strength.

 Shell 18 plug  and  socket ,we have 18-1  10pins,18-3  2pins,18-21  3pins,18-10  4pins,18-11  5pins,18-2  12pins,18-8  8pins,18-13  4pins,18-6  1pin,18-9  7pins,18-12  6pins。10A  15A  30A  50A  80A  current.

Detail Code:MS3106A18-1S staight plug,MS3106A18-3S staight plug,MS3106A18-21S staight plug,MS3106A18-10S staight plug,MS3106A18-11S staight plug,MS3106A18-2S staight plug,MS3106A18-8Sstaight plug,MS3106A18-13S staight plug,MS3106A18-6S staight plug,MS3106A18-9S staight plug,MS3106A18-12S staight plug

                     MS3108A18-1S  angled plug,MS3108A18-3S angled plug,MS3108A18-21S angled plug,MS3108A18-10S angled plug,MS3108A18-11S angled plug,MS3108A18-2S angled plug,MS3108A18-8Sangled plug,MS3108A18-13S angled plug,MS3108A18-6S angled plug,MS3108A18-9S angled plug,MS3108A18-12S angled plug

                     MS3102A18-1P square socket,MS3102A18-3P square socket,MS3102A18-21P square socket,MS3102A18-10P square socket,MS3102A18-11P square socket,MS3102A18-2P square socket,MS3102A18-8P square socket,MS3102A18-13P square socket,MS3102A18-6P square socket,MS3102A18-9P square socket,MS3102A18-12P square socket,P=pin,S=socket  option,welcome  to  choose.

Parameter:

Material and Technical Parameter

 Standard
 Mil-C-5015 / JGB600  Coupling  thread coupling
 Shell Material
 High Strength Aluminum Alloy  Shell Finish
 Zinc plated,  army green/silver/black
 Pin number
1, 2,3,4,5,6,7,8,10,12pins  Pin arrangement Code
 See below  form
 Contacts material
 Copper Alloy; gold plated  Termination
 solder / crimp
 Gender
 S  female; P male  Solder cup diameter
 1.2;1.7;2.5;3.6;5.7mm
 Insulator Material
 Synthetic Rubber  Insulator flame retardant grade  UL94-V0   220℃
 Rate Voltage
 500V  Cable diameter range
5---15mm
 Rated Current
 10A;15A;30A;55A;80A  IP grade
 IP67
 Withstanding Voltage
 5000V/1min  Salt Spray Test
 60H  EIA364.28
 Operation Temperature -55℃--150℃  Mating Cycle
500 times

How To Choose Mil-C-5015 Connectors

Our company supply Mil-C-5015 series standard connector, the product fully meets the technical requirements of American military standard Mil-C-5015.Mil-C-5015 series electrical connectors is thread coupling, has been successfully mass used for domestic and foreign enterprises . Connector type: 3100- wall mounted socket; 3101- extension socket, 3102-square socket, 3106- straight plug. 3108-90 degree angled  plug .Pin contact of diameter:φ1.6 φ2.4 φ3.6 φ5.7 φ9.2.  Wire specifications: φ1.7-3.3 φ2.9-4.3 φ4.2-6.4 φ7.0-9.4 φ10.6-14.0 . Shell code: 8,10,12,14,16,18,20,22,24,28,32,36,40,44,48.  Contact: 1-10 , 12,16,17,19,24,26,28,32,37,46,52,54,56 . connection thread: 5/8,3/4,7/8,1-20unf-2b, 1-3/16,1-17/16,1-3/4-18unf-2b .

Material: shell Aluminum Alloy, army green, black passivation of zinc plating. The insulator: synthetic rubber.  Contact :copper alloy, gold plated.  Insulation resistance: more than 5000m in Europe, Environment temperature: -55---125 degrees, Mechanical life: 500 times.



* * *More U.S. Mil-C-5015 Standard models and pins arrangement are in the R & D, please call or E-mail to ask.
