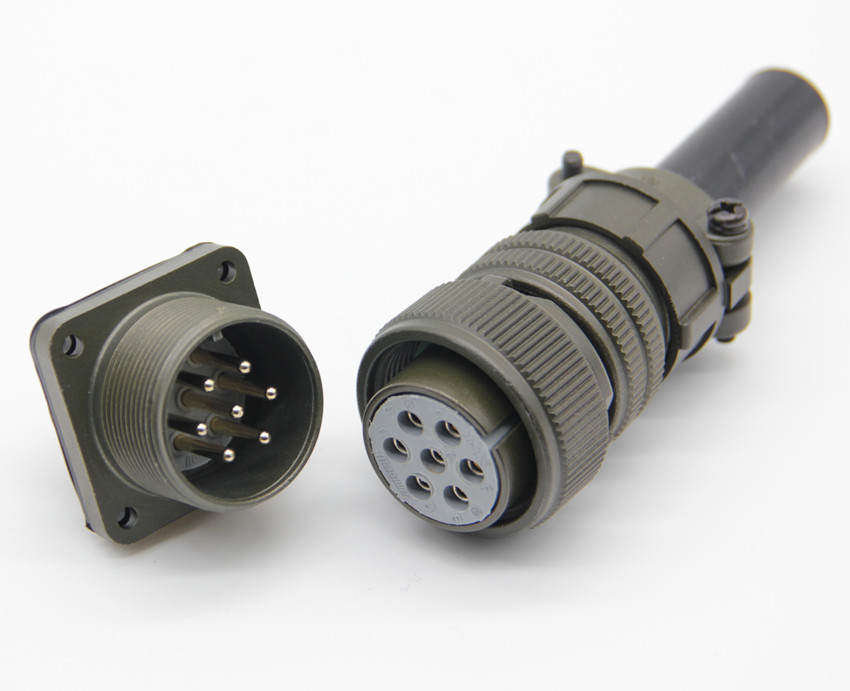

Maojwei Military Connector MIL 5015 Shell 20
Maojwei Military Connector MIL 5015 Shell 20
  • Maojwei Military Connector MIL 5015 Shell 20

  • item No : MIL 5015 Shell 20
  • Maojwei Mil-C-5015 series connectors conform to US military Mil-C-5015 standard(GJB600), with high strength Aluminum Alloy shell, Synthetic rubber insulator, threaded coupling, Alternate insert positioning, solderand crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military , defense equipment, marine , automobile industry, instrument and servo motor etc. Our connectors can replace European and American similar products. Features: (a) High quality,highwithstanding voltage, high reliability;low cost;light weight, different size; (b)MS3106 straight plug,MS3108 angled plug,MS3102 socket,MS3101plug,MS3100 plug,MS3057cable clamp,MS25042/25043dust cap. (c) Solder and crimping type; (d) Good sealing performance, waterproof IP67; (e)Corrosion resistance; hard dielectric inserts;good electrical conductivity and mechanical strength.
  • Inquiry now

Detailed description


Chat with meChat with me online

Maojwei Mil-C-5015 series connectors conform to US military Mil-C-5015 standard(GJB600), with high strength Aluminum Alloy shell, Synthetic rubber insulator, threaded coupling, Alternate insert positioning, solderand crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military , defense equipment, marine , automobile industry, instrument and servo motor etc. Our connectors can replace European and American similar products.

Features: (a) High quality,highwithstanding voltage, high reliability;low cost;light weight, different size;

                 (b)MS3106 straight plug,MS3108 angled plug,MS3102 socket,MS3101plug,MS3100 plug,MS3057cable clamp,MS25042/25043dust cap.

                 (c) Solder and crimping type;

                 (d)  Good sealing performance, waterproof IP67;

                 (e)Corrosion resistance; hard dielectric inserts;good electrical conductivity and mechanical strength.

Shell 20 plug and Socket 20-2 1pins,20-4 4pins,20-7 8pins,20-8 6pins,20-9 8pins,20-14 5pins,20-15 7pins,20-16 9pins,20-17 6pins,20-18 9pins,20-19 3pins,20-22 6pins,20-23 2pins,20-24 4pins,20-27 14pins,20-29 17pins,20-33 11pins,20-13 4pins,20-48 19pins,20-88 8pins, 10A 15A 30A 55A 80A 120A current。

Detail code: MS3106A20-2S straight plug,MS3106A20-4Sstraight plug,MS3106A20-7S straight plug,MS3106A20-8S straight plug,MS3106A20-9S straight plug,MS3106A20-14S straight plug,MS3106A20-15S straight plug,MS3106A20-16S straight plug,MS3106A20-17S straight plug,MS3106A20-18S straight plug,MS3106A20-19S straight plug,MS3106A20-22S straight plug,MS3106A20-23S straight plug,MS3106A20-24S straight plug,MS3106A20-27S straight plug,MS3106A20-29S straight plug,MS3106A20-33S straight plug,MS3106A20-13S straight plug,MS3106A20-48S straight plug,MS3106A20-88S ;

MS3108A20-2S angled plug,MS3108A20-4S angled plug,MS3108A20-7S angled plug,MS3108A20-8S angled plug,MS3108A20-9S angled plug,MS3108A20-14S angled plug,MS3108A20-15S angled plug,MS3108A20-16S angled plug,MS3108A20-17S angled plug,MS3108A20-18S angled plug,MS3108A20-19S angled plug,MS3108A20-22S angled plug,MS3108A20-23S angled plug,MS3108A20-24S angled plug,MS3108A20-27S angled plug,MS3108A20-29S angled plug,MS3108A20-33S angled plug,MS3108A20-13S angled plug,MS3108A20-48S angled plug,MS3108A20-88S angled plug;

MS3102A20-2P square socket,MS3102A20-4P square socket,MS3102A20-7P square socket,MS3102A20-8P square socket,MS3102A20-9P square socket,MS3102A20-14P square socket,MS3102A20-15P square socket,MS3102A20-16P square socket,MS3102A20-17P square socket,MS3102A20-18P square socket,MS3102A20-19P square socket,MS3102A20-22P square socket,MS3102A20-23P square socket,MS3102A20-24P square socket,MS3102A20-27P square socket,MS3102A20-29P square socket,MS3102A20-33P square socket,MS3102A20-13P square socket,MS3102A20-48P square socket,MS3102A20-88P square socket. P=pin, S=socket  welcome to choose.

Parameter:

Material and Technical Parameter

 Standard
 Mil-C-5015 / JGB600  Coupling  thread coupling
 Shell Material
 High Strength Aluminum Alloy  Shell Finish
 Zinc plated,  army green/silver/black
 Pin number
1, 2,3,4,5,6,7,8,9.11,14,14,17,19pins  Pin arrangement Code
 See below  form
 Contacts material
 Copper Alloy; gold plated  Termination
 solder / crimp
 Gender
 S  female; P male  Solder cup diameter
 1.2;1.7;2.5;3.6;5.7;9.1mm
 Insulator Material
 Synthetic Rubber  Insulator flame retardant grade  UL94-V0   220℃
 Rate Voltage
 500V  Cable diameter range
10---16mm
 Rated Current
 10A;15A;30A;55A;80A;120A  IP grade
 IP67
 Withstanding Voltage
 5000V/1min  Salt Spray Test
 60H  EIA364.28
 Operation Temperature -55℃--150℃  Mating Cycle
500 times

How To Choose Mil-C-5015 Connectors

Our company supply Mil-C-5015 series standard connector, the product fully meets the technical requirements of American military standard Mil-C-5015.Mil-C-5015 series electrical connectors is thread coupling, has been successfully mass used for domestic and foreign enterprises . Connector type: 3100- wall mounted socket; 3101- extension socket, 3102-square socket, 3106- straight plug. 3108-90 degree angled  plug .Pin contact of diameter:φ1.6 φ2.4 φ3.6 φ5.7 φ9.2.  Wire specifications: φ1.7-3.3 φ2.9-4.3 φ4.2-6.4 φ7.0-9.4 φ10.6-14.0 . Shell code: 8,10,12,14,16,18,20,22,24,28,32,36,40,44,48.  Contact: 1-10 , 12,16,17,19,24,26,28,32,37,46,52,54,56 . connection thread: 5/8,3/4,7/8,1-20unf-2b, 1-3/16,1-17/16,1-3/4-18unf-2b .

Material: shell Aluminum Alloy, army green, black passivation of zinc plating. The insulator: synthetic rubber.  Contact :copper alloy, gold plated.  Insulation resistance: more than 5000m in Europe, Environment temperature: -55---125 degrees, Mechanical life: 500 times.



* * *More U.S. Mil-C-5015 Standard models and pins arrangement are in the R & D, please call or E-mail to ask.
