Maojwei Military Connector VG95234 Shell 32
Maojwei Military Connector VG95234 Shell 32

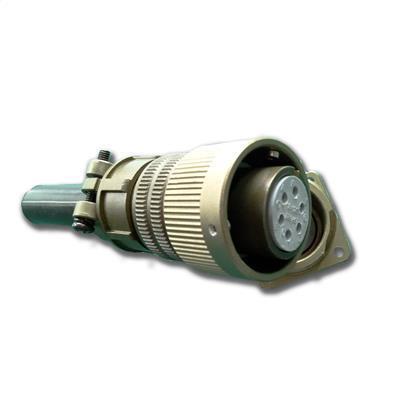

  • Maojwei Military Connector VG95234 Shell 32

  • item No : VG95234 Shell 32
  • Maojwei VG95234 series connectors conform to US military VG95234 standard(GJB600), with high strength Aluminum Alloy shell, Synthetic rubberinsulator, bayonet coupling, Alternate insert positioning, solder and crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military , defense equipment, marine , automobile industry, instrument and servo motor etc. Our connectors can replace Europeanand American similar products. Features: (a) High quality, high with standing voltage, high reliability ;low cost; light weight, different size; (b)CA3106 straight plug,CA3108 angled plug,CA3102 socket,CA3101plug,CA3100 plug,CA3057cable clamp,CA25042/25043dust cap. (c) Solder and crimping type; (d) Good sealing performance, waterproof IP67; (e)Corrosion resistance; hard dielectric inserts; good electrical conductivity and mechanical strength. Shell 32 code details
  • Inquiry now

Detailed description


Chat with meChat with me online


Explain:

Maojwei VG95234  series connectors conform to US military VG95234 standard(GJB600), with high strength Aluminum Alloy shell, Synthetic rubberinsulator, bayonet coupling, Alternate insert positioning, solder and crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military , defense equipment, marine , automobile industry, instrument and servo motor etc. Our connectors can replace Europeanand American similar products.



Features: (a) High quality, high with standing voltage, high reliability ;low cost; light weight, different size;

                 (b)CA3106 straight plug,CA3108 angled plug
,CA3102 socket,CA3101plug,CA3100 plug,CA3057cable clamp,CA25042/25043dust cap.

                (c) Solder and crimping type;

                (d) Good sealing performance, waterproof IP67;

                (e)Corrosion resistance; hard dielectric inserts; good electrical conductivity and mechanical strength.

Shell 32 code details:

Straight plug:CA3106A32-22;CA3106A32-76,;CA3106A32-21;CA3106A32-14;CA3106A32-7;CA3106A32-13;CA3106A32-17;CA3106A32-73;CA3106A32-63;CA3106A32-31;CA3106A32-8;CA3106A32-5.

Right angle plug:CA3108A32-22;CA3108A32-76;CA3108A32-21;CA3108A32-14;CA3108A32-7;CA3108A32-13;CA3108A32-17;CA3108A32-73;CA3108A32-63;CA3108A32-31;CA3108A32-8;CA3108A32-5.

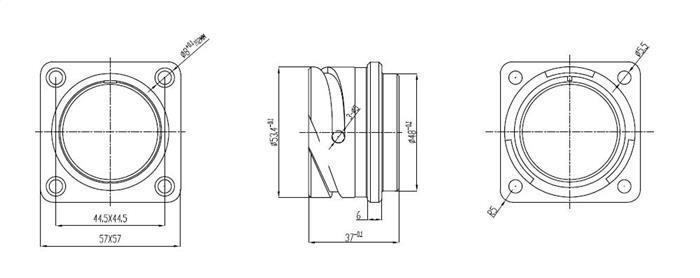

Socket:CA3102A32-22;CA3102A32-76;CA3102A32-21;CA3102A32-14;CA3102A32-7;CA3102A32-13;CA3102A32-17;CA3102A32-73;CA3102A32-63;CA3102A32-31;CA3102A32-8;CA3102A32-5.

Parameter:

Material and Technical Parameter

 Standard

 VG95234 / JGB600

 Coupling

 Bayonet coupling

 Shell Material

 High Strength Aluminum Alloy

 Shell Finish

 Zinc plated,  army green/silver/black

 Pin number

1, 2,3,4,5,6,7,8,9.11,14,14,17,19pins

 Pin arrangement Code

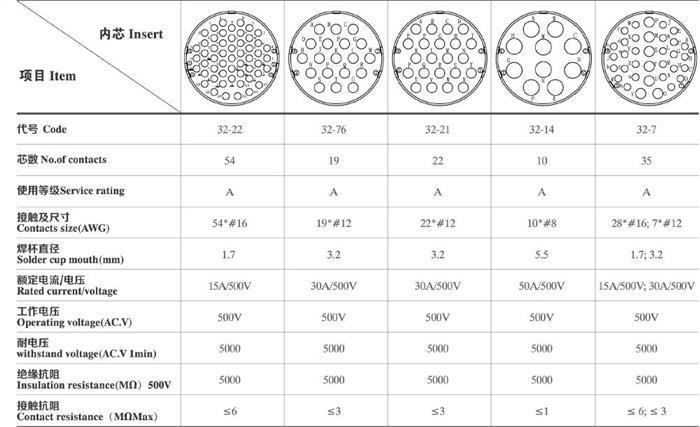

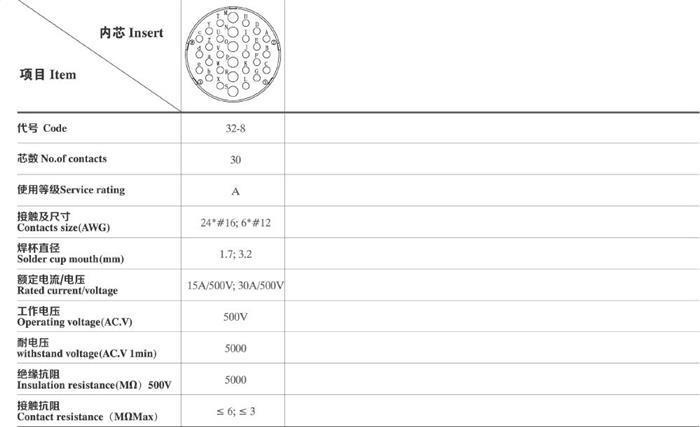

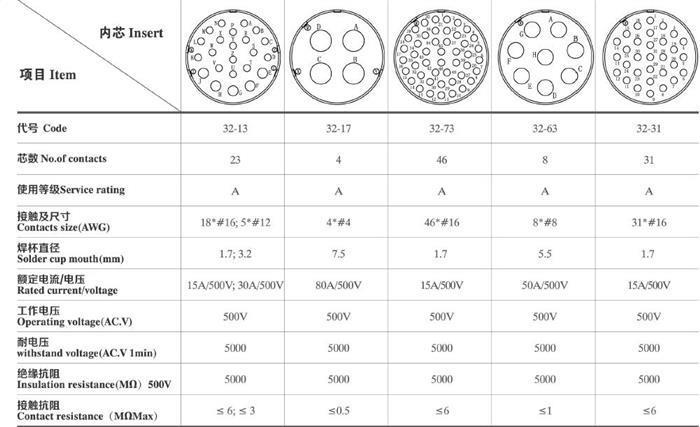

 See below  form

 Contacts material

 Copper Alloy; gold plated

 Termination

 solder / crimp

 Gender

 S  female P male

 Solder cup diameter

 1.2;1.7;2.5;3.6;5.7;9.1mm

 Insulator Material

 Synthetic Rubber

 Insulator flame retardant grade

 UL94-V0   220

 Rate Voltage

 500V

 Cable diameter range

10---20mm

 Rated Current

 10A;15A;30A;55A;80A;120A

 IP grade

 IP67

 Withstanding Voltage

 5000V/1min

 Salt Spray Test

 60H  EIA364.28


Socket hole size :

How To Choose Mil-C-5015 Connectors

Our company supply Mil-C-5015 series standard connector, the product fully meets the technical requirements of American military standard Mil-C-5015.Mil-C-5015 series electrical connectors is thread coupling, has been successfully mass used for domestic and foreign enterprises . Connector type: 3100- wall mounted socket; 3101- extension socket, 3102-square socket, 3106- straight plug. 3108-90 degree angled  plug .Pin contact of diameter:φ1.6 φ2.4 φ3.6 φ5.7 φ9.2.  Wire specifications: φ1.7-3.3 φ2.9-4.3 φ4.2-6.4 φ7.0-9.4 φ10.6-14.0 . Shell code: 8,10,12,14,16,18,20,22,24,28,32,36,40,44,48.  Contact: 1-10 , 12,16,17,19,24,26,28,32,37,46,52,54,56 . connection thread: 5/8,3/4,7/8,1-20unf-2b, 1-3/16,1-17/16,1-3/4-18unf-2b .

Material: shell Aluminum Alloy, army green, black passivation of zinc plating. The insulator: synthetic rubber.  Contact :copper alloy, gold plated.  Insulation resistance: more than 5000m in Europe, Environment temperature: -55---125 degrees, Mechanical life: 500 times.



* * *More U.S. Mil-C-5015 Standard models and pins arrangement are in the R & D, please call or E-mail to ask.
